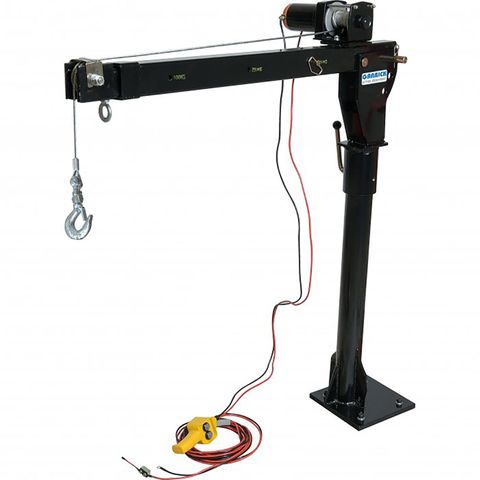

GARRICK SWIVEL UTE CRANE 12V 500/800KG CAPACITY

Stock Code:
XSUTECRANE500
Price:
$888.00 Inc GST
Make an Enquiry

Description

UTILITY CRANE IS A LIGHTWEIGHT, PORTABLE & COMPACT DESIGN FOR MOUNTING ONTO UTE'S, SERVICE BODIES, VANS, TRUCKS, LOADING DOCKS, PLATFORMS FOR LIFTING GOODS ON AND OFF UP TO 500KG WITH A SINGLE LINE LIFT VIA THE POWERFUL 12 VOLT DC WINCH

Details

  • Brand:
    GARRICK HERBERT
  • Features:
    • *800KG CAPACITY, WHEN SET UP WITH DOUBLE LINE LIFTING (@ 930MM BOOM SETTING) • 500KG CAPACITY, WHEN SET UP WITH SINGLE LINE LIFTING (@ 930MM BOOM SETTING) • 3 POSITION TELESCOPING BOOM: 500KG @ 930MM, 250KG @ 1180MM, 100KG @ 1430MM WHEN SET UP W
  • Specifications:
    • 360° CONTINUOUS MANUAL ROTATION OF SEALED THRUST BEARING • LIFTING ELECTRIC WINCH: 12V DC 125 AMPS • STORAGE HEIGHT FOLDED (FROM BASE TO HOOK): 1940MM - (MAX LIFT 3 MTR) • LIFTING HEIGHT (BASE TO HOOK): 1940MM - (MAX LIFT 3 MTR) • 250 X 250 X
  • Warranty:
    MANUFACTURES 1 YEAR WARRANTY
  • Voltage:
    12V
